1.5MW Wind Turbine Generator |
 |

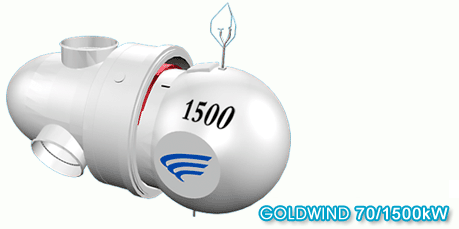

| TECHNICAL SPECIFICATION OF 70/1500 WIND ENERGY GENERATOR |
| ITEM |
description |
UNIT |
specification |
|---|---|---|---|
|
1 |
Wind Turbine |
|
|
|
1.1 |
Manufacturer |
|
|
|
1.2 |
Type |
|
70/1500 |
|
1.3 |
Rated Power |
kW |
1500 |
|
1.4 |
Cut-in Wind Speed |
m/s |
3 |
|
1.5 |
Rated Wind speed |
m/s |
11.8 |
|
1.6 |
Cut-out Wind Speed (10 minutes average) |
m/s |
25 |
|
1.7 |
Cut-out limited Wind Speed (10 seconds average) |
m/s |
35 |
|
1.8 |
Survival Wind Speed3 seconds average |
m/s |
59.5 (IECA) |
|
1.9 |
Life Time |
Y |
20 |
|
2 |
Blade |
|
|
|
2.1 |
Rotor Diameter |
m |
70.5 |
|
2.2 |
Rotational Speed |
rpm |
919 |
|
2.3 |
Material |
|
Glass Fiber Reinforced Plastic |
|
2.4 |
Length |
m |
34 |
|
2.5 |
Swept area |
m2 |
3904 |
|
3 |
Generator |
|
|
|
3.1 |
Type |
|
Multiples synchronous generator, permanent excited |
|
3.2 |
Rated Power |
kW |
1500 |
|
4 |
Brake System |
|
|
|
4.1 |
Primary Brake System |
|
3 Aerodynamic Brake |
|
4.2 |
Secondary Brake System |
|
Braking system on generator (for service) |
|
5 |
Yawing System |
|
|
|
5.1 |
Type |
|
Active yawing |
|
5.2 |
Yaw Speed |
Deg/Sec |
0.5 |
|
6 |
Converter |
|
|
|
6.1 |
Nominal output voltage |
kV |
690 |
|
6.2 |
Power factor |
|
Adjustable |
|
7 |
Tower |
|
|
|
7.1 |
Type |
|
Steel Tubular Ladder and Safety |
|
7.2 |
Height |
m |
6585 (hub height) |
|
8 |
Weight |
|
|
|
8.1 |
Nacelle(exclude rotor and generator) |
T |
11 |
|
8.2 |
Generator |
T |
39 |
|
8.3 |
Rotor(include rotor and hub) |
T |
28 |
