600W wind turbine components
600W Wind Turbine Generator

Product Description:

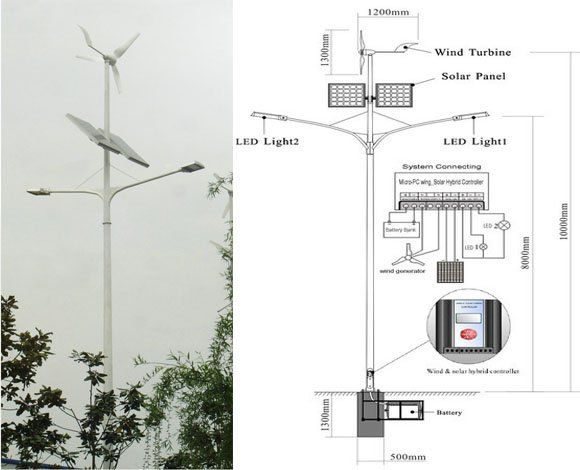

H1.25-600W is specially designed for wind-solar hybrid street light system so that the wind and solar energy can be used in the whole year. The wind-solar hybrid street lamp system is composed of small sized wind turbine, solar panels, batteries, lamp pole, controller as well as lamps.

They charge batteries in the meantime. In the night, wind turbine and batteries supply power to the lamps.The wind energy is complementary to solar energy and it can provide enough power for street light system.

Product Characteristic:

H1.25-600W wind generator has two SKF bearings which make sure the system in reliable, safe and steady status. The electromagnetic brake technique of H1.25-600W can provide high efficiency and safety.

Used in roads ,landscape,residential lighting and surveillance,communications base stations,ships and other fields. Novel & Unique appearance, can offer special design based on clients'demands.

With small, light and compact structure ,easy to instal. No security risks, the system is ultra-low-voltage products ,operating safe and reliable.

Model H1.25-600W
Configuration 3 Blades, Horizontal axis, upwind
Rotor Diameter Ф1.25m
Rated Power 600W @ 11m/s
Generator Weight 24 Vdc
System Output Voltage 24 Vac
Cut-in Wind Vpeed 2.5 m/s
Working Wind Speed 3-25 m/s
Survival Wind Speed 50 m/s
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Alternator Permanent magnet alternator, SCF technology
Alternator Weight (kg) 7.0 kg
Gearbox None, Direct drive, front generator design
Blade Material Fiberglass reinforced composite
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
600W Wind Turbine/Generator

1. Hummer H1.25-600W wind-solar hybrid power system is an innovative, environmentaly source.

2. It is cost effective and simple to install. It is an innovative, environmentally friendly source, an independent outdoor lighting system that is cost effective and simple to install almost anywhere.

3. H1.25-600W wind-solar hybrid power system is a new concept in amenity lighting designed for the 21st Century providing illumination at almost any location remote from the grid electricity supply.


1. Anti-Rust, Anti-Corruption Damp-Proof, Water-Proof, Stand-Proof.

2. CE / ISO9001:2000 / ROHS Quality Certification.

3. Fiberglass reinforced composite & high efficiency of anti-wind ability.

4. SCF supercritical generator technology, generator weight only 7.0 kg, generator efficiency over 0.80.

5. Large Power, Low Volume, High Efficiency.
