2mw

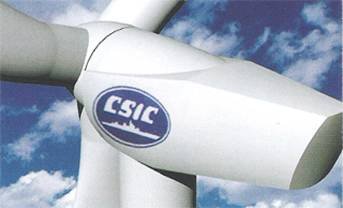

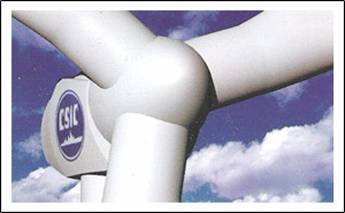

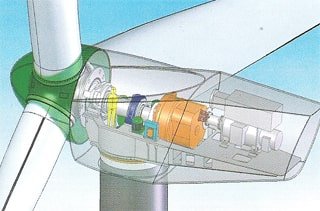

 2MW wind generator set  The model is desiged by our company and germany aerodyne company togetherit is patented products the technical data as follows
Item parameter
impeller diameter 82.4 92.8
Bub height 80 100
Power regulation Changed speed
Cut in wind speedm/s 3
Cut out wind speed (m/s) 25
Rating wind speed (m/s) 12 10.5
Generator type Double feedback asynchronism generator
Rating power (kW) 2068 2068
Valtage (v) 690
Frequency (Hz) 50
Gearbox ratio : 103.3 117
Tower model : Taper type
Brake system Air brake Suitable oar
Mechnical brade Brake pan
Safety grade IEC TC2A+ IEC TC3A
Satety wind speed (m/s) 70 52.5
v[m/s] Pel.[KW]

cp[-]

3.0 13.2 0.448
4.0 67.5 0.474
5.0 185.5 0.474
6.0 352.3 0.474
7.0 591.3 0.474
8.0 907.3 0.474
9.0 1309.5 0.474
10.0 1785.9 0.467
11.0 2000.0 0.391
12.0 2000.0 0.301
13.0 2000.0 0.236
14.0 2000.0 0.189
15.0 2000.0 0.154
16.0 2000.0 0.127
17.0 2000.0 0.106
18.0 2000.0 0.089
19.0 2000.0 0.076
20.0 2000.0 0.065
21.0 2000.0 0.056
22.0 2000.0 0.049
23.0 2000.0 0.043
24.0 2000.0 0.038
25.0 2000.0 0.033

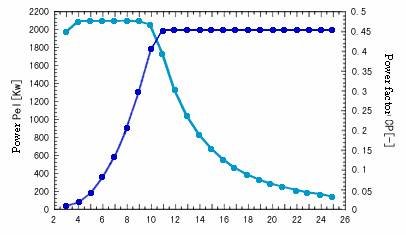

2MW (impeller diameter 92.8m) power curve
2MW genset impeller diameter 92.8mgenerated /year curve
wind speed V[m/s]
average wind speed Vm[m/s]






v[m/s]

Pel.[KW]

cp[-]

3.0 9.2 0.395
4.0 55.5 0.493
5.0 152.9 0.497
6.0 290.5 0.497
7.0 487.5 0.497
8.0 745.6 0.496
9.0 1051.6 0.484
10.0 1394.3 0.464
11.0 1748.8 0.435
12.0 1983.1 0.379
13.0 2000.0 0.347
14.0 2000.0 0.308

v[m/s]

Pel.[Kw]

cp[-]

15.0 2000.0 0.262
16.0 2000.0 0.216
17.0 2000.0 0.194
18.0 2000.0 0.151
19.0 2000.0 0.141
20.0 2000.0 0.122
21.0 2000.0 0.104
22.0 2000.0 0.088
23.0 2000.0 0.079
24.0 2000.0 0.065
25.0 2000.0 0.065

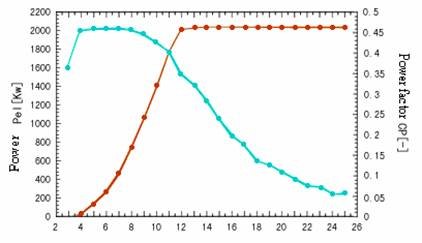

2MW(impeller diameter 82.4m)power curve


wind speed V[m/s]



2MW genset impeller diameter 82.4mgenerated /year curve

average wind speed Vm[m/s]
