850KW wind turbine genserator set

 850KW wind turbine genserator set



The model is desiged by our company and germany aerodyne company togetherit is patented products the technical data as follows







Item

prameter

impeller

Wind wheel dia(m)
So wind area

56.3
2490

Hub height(m)

70

Power regulation

Changed speed

Cut in wind speedm/s

3

Cut out wind speed (m/s)

25

Rating wind speed (m/s)

11.5

Generator

type

Four pole synchronous IP45

Rating power (kW)

850

Valtage (v)

690

Frequency (Hz)

50

Gearbox :

Planetary Gear System

Tower model :

Taper type

Brake system

Air brake

Suitable oar

Mechnical brade

Brake pan

Safety grade

IEC TC3A

Satety wind speed (m/s)

52.5





v[m/s] Pel.[KW] cp[-]

3





4

22.9

0.23

5

67.1

0.35

6

121.9

0.39

7

213.7

0.41

8

326.7

0.42

9

466.1

0.42

10

629.6

0.41

11

831.9

0.41

12

850

0.32

13

850

0.25

14

850

0.2

15

850

0.16

16

850

0.13

17

850

0.11

18

850

0.09

19

850

0.08

20

850

0.07

21

850

0.06

22

850

0.05

23

850

0.04

24

850

0.04

25

850

0.03

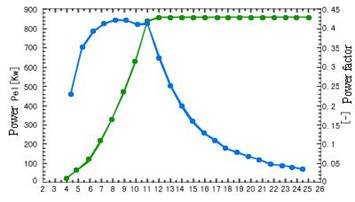

850kw(impeller diameter 92.8m)power curve
850KW wind turbine genserator set
wind speed V[m/s]

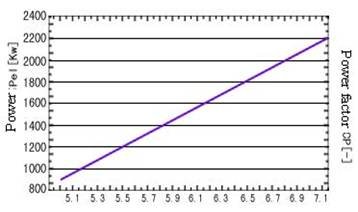

850kw genset impeller diameter 92.8mgenerated /year curve
850KW wind turbine genserator set

a verage wind speed Vm[m/s]

850KW wind turbine genserator set



850KW wind turbine genserator set
